Seismic Acquisition

The seismic survey is an essential part of the whole cycle of petroleum exploration and production. Seismic surveys are carried out on land and in transition zone, shallow marine and marine environments in different ways. The basic principle is an impulse source such as dynamite, air-gun or vibrator that sends acoustic energy into the Earth. This energy propagates in many directions. Downward travelling energy reflects and refracts when it encounters boundaries between two layers with different acoustic properties . Sensors or geophones placed on the surface measure the reflected acoustic energy, converting it into an electrical signal that is displayed as a seismic trace. Read more about it here.

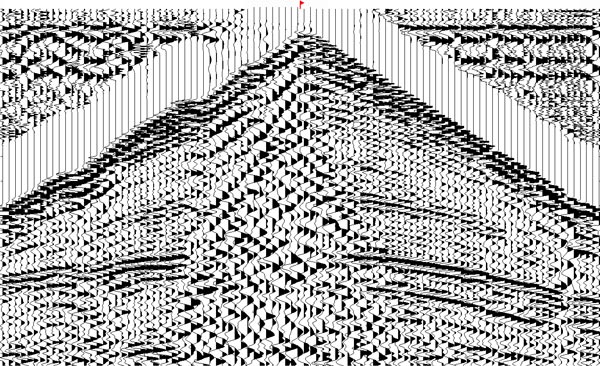

Seismic traces

Seismic acquisition can be performed both on land and in marine environments by using 2D or 3D seismic method.

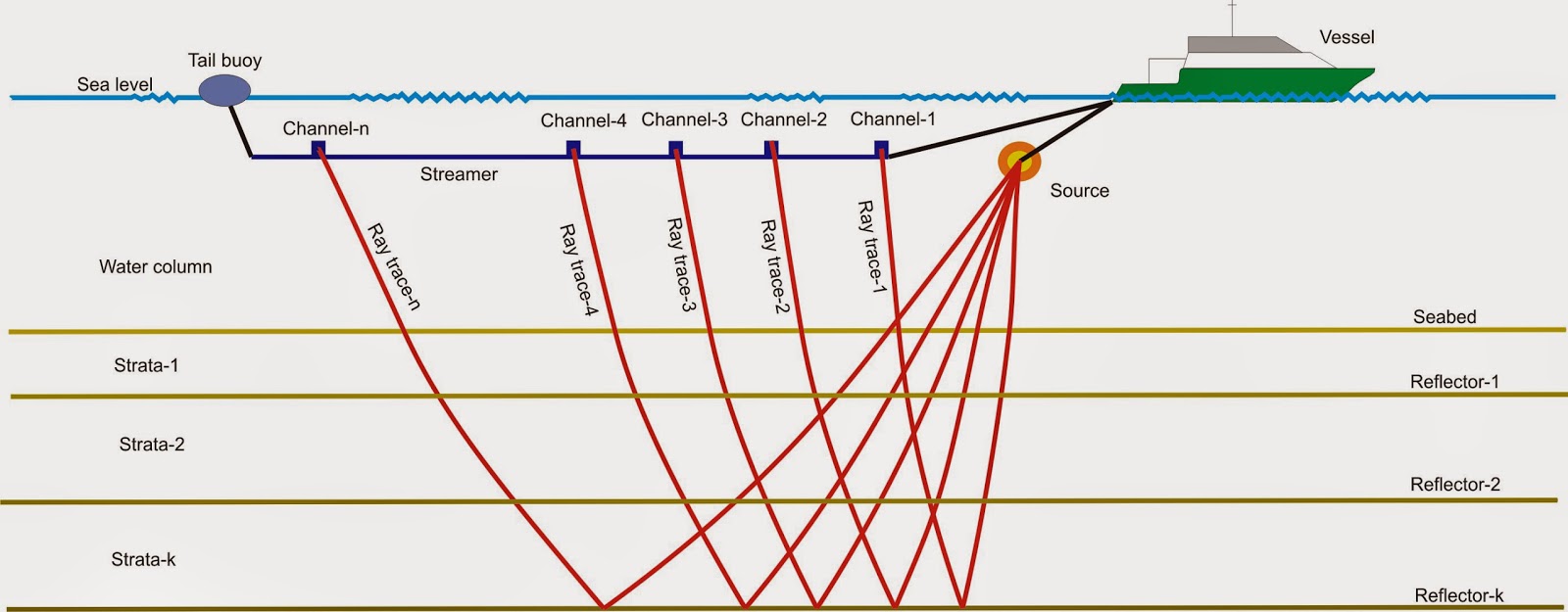

2D Seismic Design

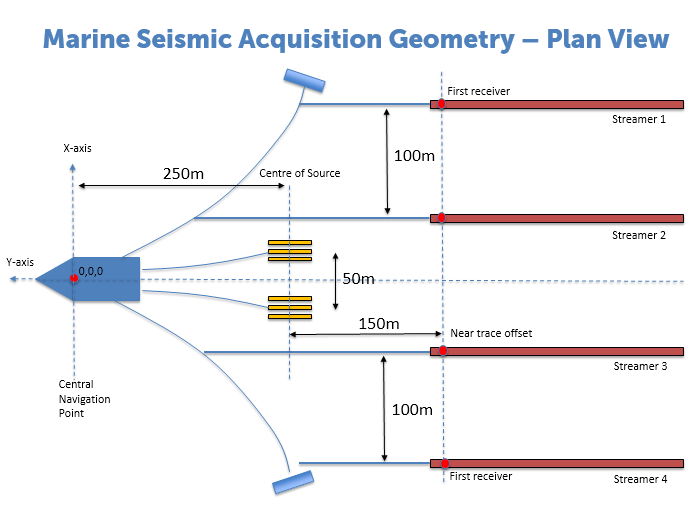

3D Seismic Design

---
